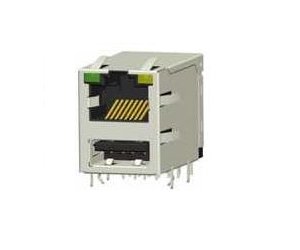

  • 产品名称:RJ45 JACK TSFM-TURT-S180S 连接器
  • 产品编号:RJ45 JACK TSFM-TURT-S180S
  • 浏览量:2

RJ45 JACK 10/100M BASE-T

Single Port + Single USB 28.9mm


ELECTRICAL CHARACTERISTICS:

Test Notes:(25±5℃)

1.TR:(100KHz,0.1V);

 Pins:(P1,P3):(J1,J2)=1:1±3%;

 Pins:(P4,P6):(J3,J6)= 1:1±3%

2.LX:(100KHz,100mV,8mA,DC Biss)

 Pins: (P1,P3), (P4,P6)=350uH Minimum

3.DCR:Plns: (J1,J2), (J3,J6) =1.2ΩMaximum

4.HIPOT:Pins (P2,P1,P3) to (J1,J2) =1500VAC For 60s or 2250VDC 60S

 Pins (P4,P5,P6) to (J3,J6) =1500VAC For 60s or 2250VDC 60S

5.INSERTION LOSS:

 -1.0 dB Maximum at 0.3MHz to 100MHz;

6.RETURN LOSS:

-20dB Minimum at 1MHz to 30MHz,Load 100Ω

-15dB Minimum at 30MHz to 60MHz,Load 100Ω

-10dB Minimum at 60MHz to 80MHz,Load 100Ω

7.CROSS TALK:-30dB Minimum at 1MHZ to 100MHz

8.COMMON TO COMMON DODE REJECTION:

 -30dB Minimum at1MHz to 100MHz
