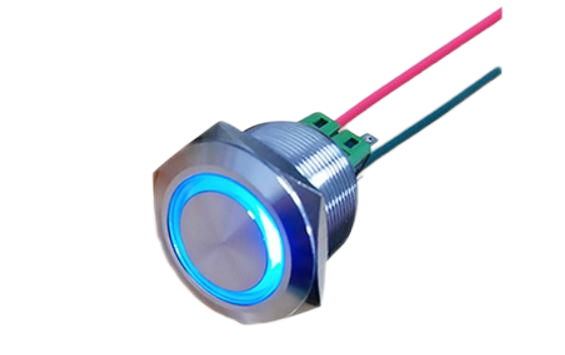

产品名称: 25MM金属按钮开关

产品信息:

SPECIFCATIONS

MAX.SWITCH RATING:3A 250VAC

TEMPERATURE:-20℃to85℃

ELECTRICAL LIFE:100000CYCLES

MECHANICAL  LIFE:500000CYCLES

CONTACT  RESISTANCE:50mΩMAX

INSULATION RESISTANCE:1000MΩmin

DIELECTRENGTH:2000VAC  FOR  1 MIBUTE

INGRESS  PROTECTION: IP67

PANEL  CUTOUT;25mm  diameter

TRAVEL:2.0mm±0.4mm

MATERIALS

BUTTON:NICKEL  PIATED  BRASS

SHEII:NICKEL PLATDF  BRASS

BASE: PA66

SEALING:STAINLESS STEEL

CONTACT:SILVER  ALLOU

TERMINALS:SILVER  PIATDE  BRASS

LED  SPEC

RATED  VOLTAGE:3V/6V/12V/24V/36V/48V/110V/220V

ILLUMINATION  BASE  RATING:RED,YELLOW  AND  ORANGE:20MA  1.8V,BIUE,GREEN  AND WHITE:20MA  2.8V

BEADS COLOR :R/U/G/Y/O/W

LAMP LIFE:50000H
